Standart temel özellikler

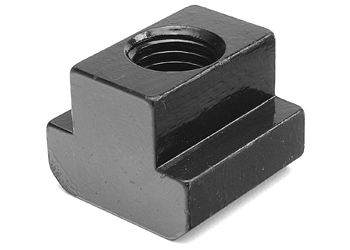

Designation : T-Nuts DIN 508
Usual standards : DIN 508, ISO 299
Standard material : Class 10,9 brown steel
Comments : Special dimensions and materials on request.
|
Matière = Acier classe 10.9 Bruni
Material : blackened steel grade 10.9
|

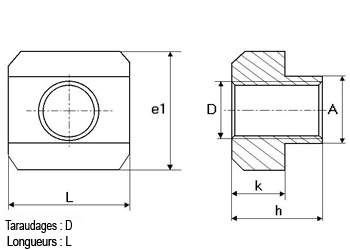

| D |
A |
L
|
h
|
k |
e1 |
| M5 |
6 |
10 |
8 |
4 |
10 |
| M6 |
8 |
13 |
10 |
6 |
13 |
| M8 |
10 |
15 |
12 |
6 |
15 |
| M8 |
12 |
18 |
14 |
7 |
15 |
| M10 |
12 |
18 |
14 |
7 |
18 |
| M10 |
14 |
22 |
16 |
8 |
18 |
| M12 |
14 |
22 |
16
|
8
|
22 |
| M12 |
16 |
25 |
18 |
9 |
22 |
| M14 |
16 |
25 |
18 |
9 |
25 |
| M14 |
18 |
28 |
20 |
10 |
25 |
| M16 |
18 |
28 |
20 |
10 |
28 |
| M16 |
20 |
32 |
24 |
12 |
28 |
| M18 |
20 |
32 |
24 |
12 |
32 |
| M20 |
22 |
35 |
28 |
14 |
35 |
| M20 |
24 |
40 |
32 |
16 |
35 |
| M22 |
24 |
40 |
32 |
16 |
40 |
| M24 |
28 |
44 |
36 |
18 |
44 |
| M24 |
30 |
48 |
38 |
19 |
44 |
| M24 |
36 |
54 |
44 |
22 |
44 |
| M27 |
32 |
50 |
40 |
20 |
50 |
| M30 |
36 |
54 |
44 |
22 |
54 |
| M30 |
42 |
65 |
52 |
26 |
54 |
| M36 |
42 |
65 |
52 |
26 |
65 |
| M42 |
48 |
75 |
60 |
30 |
75 |
| M48 |
54 |
85 |
70 |
34 |
85 |
