Standart temel özellikler

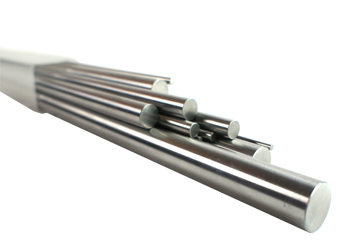

Designation : 2m long STUB bars tolerance h7
Usual standards : Long steel stub bars
Standard material : Steel 100Cr6 Rm>800N/mm²
Comments : To obtain 58-62HRC hardness (like for hardened pins), they must be hardened and tempered after machining.
Other dimensions tolerances and materials on request.
See long steel STUB bars kit
|
Matière = 100Cr6 Rm>800N/mm2
Material = 100Cr6 (breaking strength 800 N/mm)
|
|
Diamètres disponibles en cotes métriques
Tolérance = h7
Diameter available in stock in metric dimensions
|
Diamètres disponibles en cotes pouces
Tolérance = h7
Diameter available in stock in imperial dimensions
|
| 2 |
11 |
20 |
6.33 |
| 2.5 |
11.5 |
22 |
7.93 |
| 3 |
12 |
24 |
9.52 |
| 3.5 |
12.5 |
26 |
12.70 |
| 4 |
13 |
28 |
15.87 |
| 4.5 |
13.5 |
30
|
19.05 |
| 5 |
14 |
32 |
22.22 |
| 5.5 |
14.5 |
35 |
25.40 |
| 6 |
15 |
40 |
|
| 6.5 |
15.5 |
|
|
| 7 |
16 |
|
|
| 7.5 |
16.5 |
|
|
| 8 |
17 |
|
|
| 8.5 |
17.5 |
|
|
| 9 |
18 |
|
|
| 9.5 |
18.5 |
|
|
| 10 |
19 |
|
|
| 10.5 |
19.5 |
|
|
