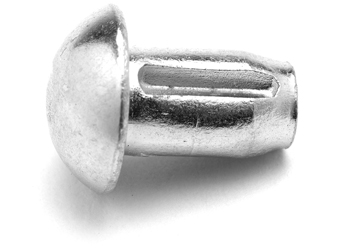

Round head grooved pins (DIN 1476 - ISO 8746)
Designation : Round head grooved pins ISO 8746 - DIN 1476
Usual standards : ISO 8746, DIN 1476
Equivalent standards : CTR1, EN 28746
Standard material : Steel or stainless steel
Comments : Other dimensions and special materials on request, particulary brass, aluminium, cupro aluminium…
|
Material = Steel (UST36B) and stainless steel
|

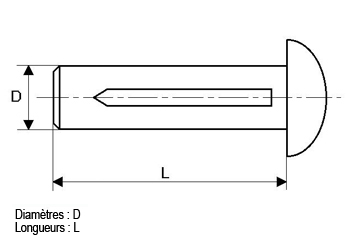

| D |
L |
| 1.4 |
3 |
4 |
5 |
6 |
|
|
|
|
|
|
|
|
| 1.6 |
3 |
4 |
5 |
6 |
|
|
|
|
|
|
|
|
| 1.7 |
3 |
4 |
5 |
6 |
|
|
|
|
|
|
|
|
| 2 |
3 |
4 |
5 |
6 |
8 |
10 |
|
|
|
|
|
|
| 2.5 |
3 |
4 |
5 |
6 |
8 |
10 |
|
|
|
|
|
|
| 3 |
|
4 |
5 |
6 |
8 |
10 |
12 |
15 |
|
|
|
|
| 4 |
|
|
|
6 |
8 |
10 |
12 |
15 |
18 |
20 |
|
|
| 5 |
|
|
|
6 |
8 |
10 |
12 |
15 |
18 |
20 |
25 |
|
| 6 |
|
|
|
6 |
8 |
10 |
12 |
15 |
18 |
20 |
25 |
30 |
