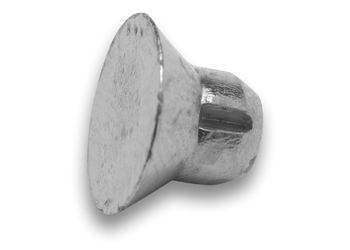

Flat head grooved pins (DIN 1477 - ISO 8747)
Designation : Flat head grooved pins ISO 8747 - DIN 1477
Usual standards : ISO 8747, DIN 1477
Equivalent standards : CTF1, EN 28747
Standard material : Steel or stainless steel
Comments : Special dimensions and materials on request, especially brass, aluminium, cuproaluminium...
|
Material = Steel (UST36B) and stainless steel
|

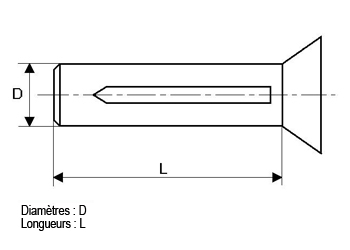

| D |
L |
| 1,4 |
3 |
4 |
5 |
6 |
|
|
|
|
|
|
|
|
| 1,6 |
3 |
4 |
5 |
6 |
|
|
|
|
|
|
|
|
| 1,7 |
3 |
4 |
5 |
6 |
|
|
|
|
|
|
|
|
| 2 |
3 |
4 |
5 |
6 |
8 |
10 |
|
|
|
|
|
|
| 2,5 |
3 |
4 |
5 |
6 |
8 |
10 |
|
|
|
|
|
|
| 3 |
|
4 |
5 |
6 |
8 |
10 |
12 |
15 |
|
|
|
|
| 4 |
|
|
|
6 |
8 |
10 |
12 |
15 |
18 |
20 |
|
|
| 5 |
|
|
|
6 |
8 |
10 |
12 |
15 |
18 |
20 |
25 |
|
| 6 |
|
|
|
6 |
8 |
10 |
12 |
15 |
18 |
20 |
25 |
30 |
