Standart temel özellikler
Designation : INTERVIS® Screws sert
Usual standards : INTERVIS®
Standard material : galvanized cemented steek, stainless steel, bras

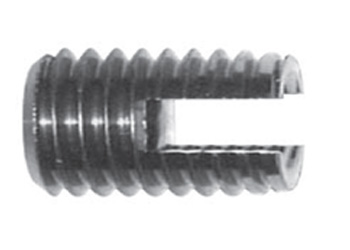

Comments : The Screw-sert is a metallic insert composed by a normalized threaded and an appropriate external threading.
Truncation of external thread.
Two grooves with sharp edges.
Advantages :
- Without pre-tapping.
- Perfect anchoring of the SCREW SERT, no clearance between it and the part.
- Security increased for high pull-out.
- Tapping wear suppression.
See the boxed INTERVIS screw sert technical steel.
|
Material = Steel, brass, stainless steel
|
| M |
Thread ISO
|
Length |
Unslit
length
|
| |

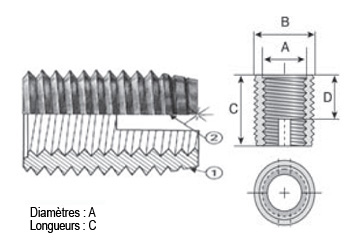

Inside A
|
Outside B |
C |
D
|
| M2,5 |
2,5 X 0,45 |
4,5 X 0,5 |
6 |
3,3 |
| M3 |
3 X 0,50 |
5 X 0,5 |
6 |
3,3 |
| M3,5 |
3,5 X 0,60 |
6 X 0,75 |
8 |
4,3 |
| M4 |
4 X 0,70 |
6,5 X 0,75 |
8 |
4,3 |
| M5 |
5 X 0,80 |
8 X 1,00 |
10 |
5,3 |
| M6a |
6 X 1,00 |
9 X 1,00 |
12 |
6,1 |
| M6 |
6 X 1,00 |
10 X 1,50 |
14 |
7,3 |
| M8 |
8 X 1,25 |
12 X 1,50 |
15 |
8 |
| M10 |
10 X 1,50 |
14 X 1,50 |
18 |
10,3 |
| M12 |
12 X 1,75 |
16 X 1,50 |
22 |
12 |
| M14 |
14 X 2,00 |
18 X 1,50 |
24 |
14 |
| M16 |
16 X 2,00 |
20 X 1,50 |
22 |
12 |
