Standart temel özellikler
Designation : INTERVIS® for Ultra-High Performance Fiber-Reinforced Concretes (UHPFRC), like Ductal®.
Usual standards : INTERVIS®.
Standard material : Carburised zinc plated steel, stainless steel, brass.

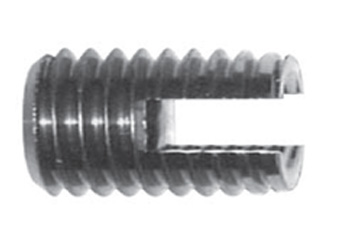

Comments : INTERVIS® is a self-tapping insert screw with a standard tapping and an external thread fitting UHPFRC.
Two grooves avoiding rotation inside the concrete.
Advantages :
- No drilling, possibility of molding from a casting.
- Perfect anchorage, no gap between the Intervis® and the receptive part.
- High resistance to break out.
Previously used for projects :
- Louis Vuitton foundation, currently under construction by Bonna Sabla.
- Every Library, with its front wall fixed by UHPFRC.
- ITER headquarter, with its shade device fixation.
Check also our assortment of Intervis®
|

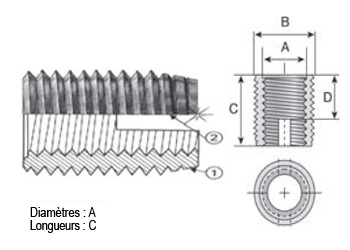

Material = Steel, Brass, Stainless steel
|
| M |
Thread ISO
|
Length |
Unslit
length
|
| |
Inside A
|
Outside B |
C |
D
|
| M2,5 |
2,5 X 0,45 |
4,5 X 0,5 |
6 |
3,3 |
| M3 |
3 X 0,50 |
5 X 0,5 |
6 |
3,3 |
| M3,5 |
3,5 X 0,60 |
6 X 0,75 |
8 |
4,3 |
| M4 |
4 X 0,70 |
6,5 X 0,75 |
8 |
4,3 |
| M5 |
5 X 0,80 |
8 X 1,00 |
10 |
5,3 |
| M6a |
6 X 1,00 |
9 X 1,00 |
12 |
6,1 |
| M6 |
6 X 1,00 |
10 X 1,50 |
14 |
7,3 |
| M8 |
8 X 1,25 |
12 X 1,50 |
15 |
8 |
| M10 |
10 X 1,50 |
14 X 1,50 |
18 |
10,3 |
| M12 |
12 X 1,75 |
16 X 1,50 |
22 |
12 |
| M14 |
14 X 2,00 |
18 X 1,50 |
24 |
14 |
| M16 |
16 X 2,00 |
20 X 1,50 |
22 |
12 |

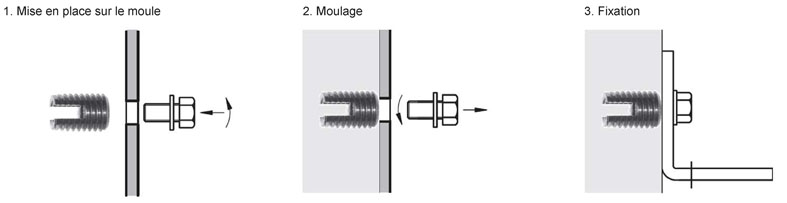

Installation example :
