Standart temel özellikler

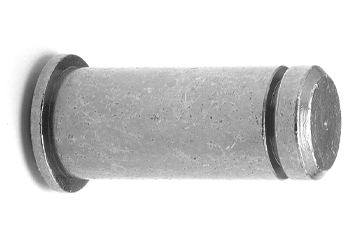

Designation : Bolts with groove for retainers
Standard material : Spring S300 galvanized
Comments : Accessories for machined forks.
Rough, phosphated finish, on request.
|
Material = S300Pb
|
|

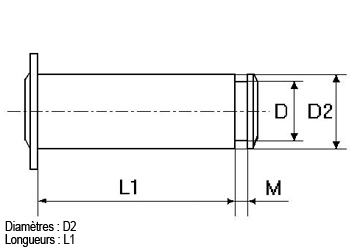

D
h11
|
L1
(0;+0,3)
|
'D2
(0;-0,2)
|
M
(0;+0,1)
|
| 4 |
8,5 |
3,2 |
0,64 |
| 5 |
10,5 |
4 |
0,74 |
| 6 |
12,5 |
5 |
0,74 |
| 8 |
16,5 |
6 |
0,94 |
| 10 |
20,5 |
8 |
1,05 |
| 12 |
24,5 |
9 |
1,15 |
| 14 |
27,5 |
10 |
1,25 |
| 16 |
32,5 |
12 |
1,35 |
