Standart temel özellikler

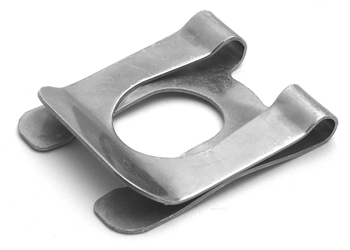

Designation : Retainers
Standard material : Galvanized spring steel
Comments : Accessories for machined forks
Rough, phosphated finish, and stainless steel on request.
|
Material = Galvanized spring steel
|
|

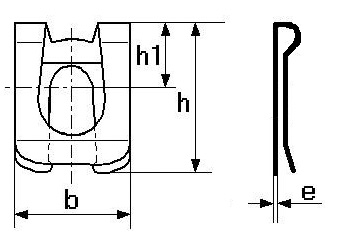

D
h11
|
b |
h
|
h1 |
e |
charge axiale en N
|
| 4 |
7 |
8,5 |
4 |
0,3 |
1000 |
| 5 |
9 |
10,7 |
5 |
0,4 |
1300 |
| 6 |
11 |
14,1 |
6 |
0,4 |
1500 |
| 8 |
14 |
17,5 |
8 |
0,5 |
3600 |
| 10 |
18 |
22,1 |
10 |
0,5 |
6400 |
| 12 |
22 |
26 |
12 |
0,5 |
9600 |
| 14 |
25 |
30 |
13,5 |
0,6 |
11320 |
| 16 |
28 |
34 |
16 |
0,6 |
13500 |
