Standart temel özellikler

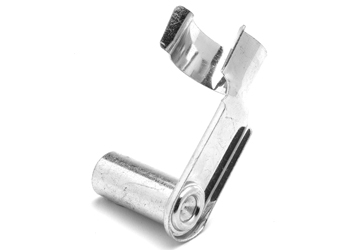

Designation : Folding spring bolts
Standard material : galvanized spring steel
Comments : Accessories for machined forks
|
Material = galvanized spring steel white
|

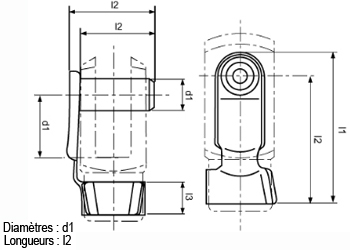

| d1 |
g |
b
|
a |
l1 |
l2 |
l3 |
| 4 |
8 |
11 |
9,5 |
19 |
15 |
4,5 |
| 5 |
10 |
13,5 |
12 |
23 |
19 |
5,5 |
| 5 |
20 |
13,5 |
12 |
33 |
29 |
5,5 |
| 6 |
12 |
16 |
14 |
28 |
23 |
6,5 |
| 6 |
24 |
16 |
14 |
40 |
35 |
6,5 |
| 8 |
16 |
22 |
19 |
37 |
30 |
8 |
| 8 |
32 |
22 |
19 |
52 |
46 |
8 |
| 10 |
20 |
26 |
23 |
46 |
36 |
10 |
| 10 |
40 |
26 |
23 |
66 |
58 |
10 |
| 12 |
24 |
32 |
28 |
53 |
45 |
12 |
| 12 |
48 |
32 |
28 |
78 |
69 |
12 |
| 16 |
32 |
40 |
36 |
73 |
62 |
16 |
| 20 |
40 |
48 |
45 |
87,5 |
71,5 |
16 |
